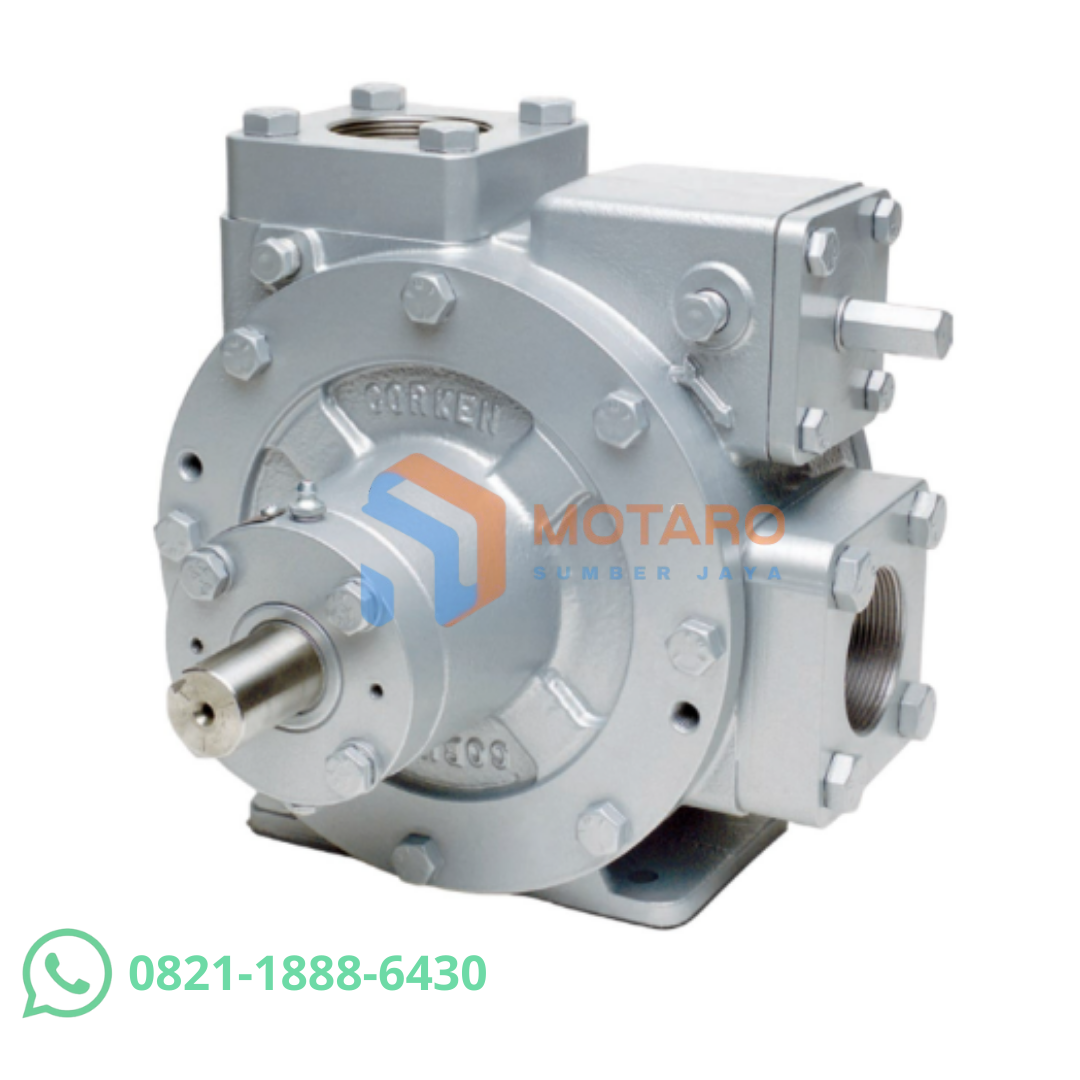

Corken PZ7 2” NPT Cast Iron Sliding Vane Petroleum Pump

Spesifikasi Corken PZ7 2” NPT Cast Iron Sliding Vane Petroleum Pump

Cari berbagai macam dari pilihan terlengkap . Cari penawaran terbaik dan termurah dari supplier terlengkap di Indonetwork.

Vane Pump
Corken PZ7 2” NPT Cast Iron Sliding Vane Pump adalah pompa tipe sliding vane berbahan cast iron dengan koneksi 2” NPT, dirancang untuk aplikasi transfer cairan seperti LPG, amonia, dan berbagai cairan industri. Pompa ini menawarkan kinerja andal, efisiensi tinggi, serta perawatan mudah, menjadikannya pilihan tepat untuk penggunaan pada truk tangki maupun instalasi stasione

Model: PZ7
Standard connections: 2 in. NPT
Maximum differential pressure: 125 psid (8.6 bar)
Temperature range: Up to 300°F (149°C)
Maximum working pressure: 200 psi (13.8 bar)
Maximum speed: 800 RPM
Fluids handled: Refined petroleum products and industrial solvents
Case/Head/Flanges Material: Ductile iron ASTM A536
Weld flanges: Steel ASTM A516
Rotor/Bearing cap: Ductile iron ASTM A536
Sideplates: Cast iron Class 30
Vanes and vane drivers: Advanced polymer
Bypass valve: Cast iron ASTM A48 electroless nickel plated
Bypass valve spring: Steel
Seal seat: Silicon carbide
Seal metal parts: Steel
Shaft: 8620 steel
Thrust bearing: Steel
O-rings: Viton
Meter Specifications:

Model: M7K1-LCR2-I#30
Registration: LCR-II
Flow Direction: Left to Right
Unit of Measure: 1/10 Gallon
Flow Rate: 100 GPM (378 LPM)
Pressure Rating: 150 PSI (10.3 bar, 1034 kPa)
Temperature Range: -40° F to 185° F (-40° C to 85° C)
Internal Components: Aluminum, Ni-Resist, Stainless Steel
Seal Materials: Nitrile
Bearings: Ni-Resist
Flange Size: 2 in.
Max Pressure: 150 psi (10.3 bar, 1034 kPa)
Strainer Type: High Capacity
Mesh: 40
Air Eliminator: Optical
Valve Type: Block
Valve Outlet: Inline
Class: Class 1 - Refined petroleum products
