EMERSON FISHER DLC3100 Digital Level Controller FIELDVUE - Agen Lokal

Spesifikasi EMERSON FISHER DLC3100 Digital Level Controller FIELDVUE - Agen Lokal

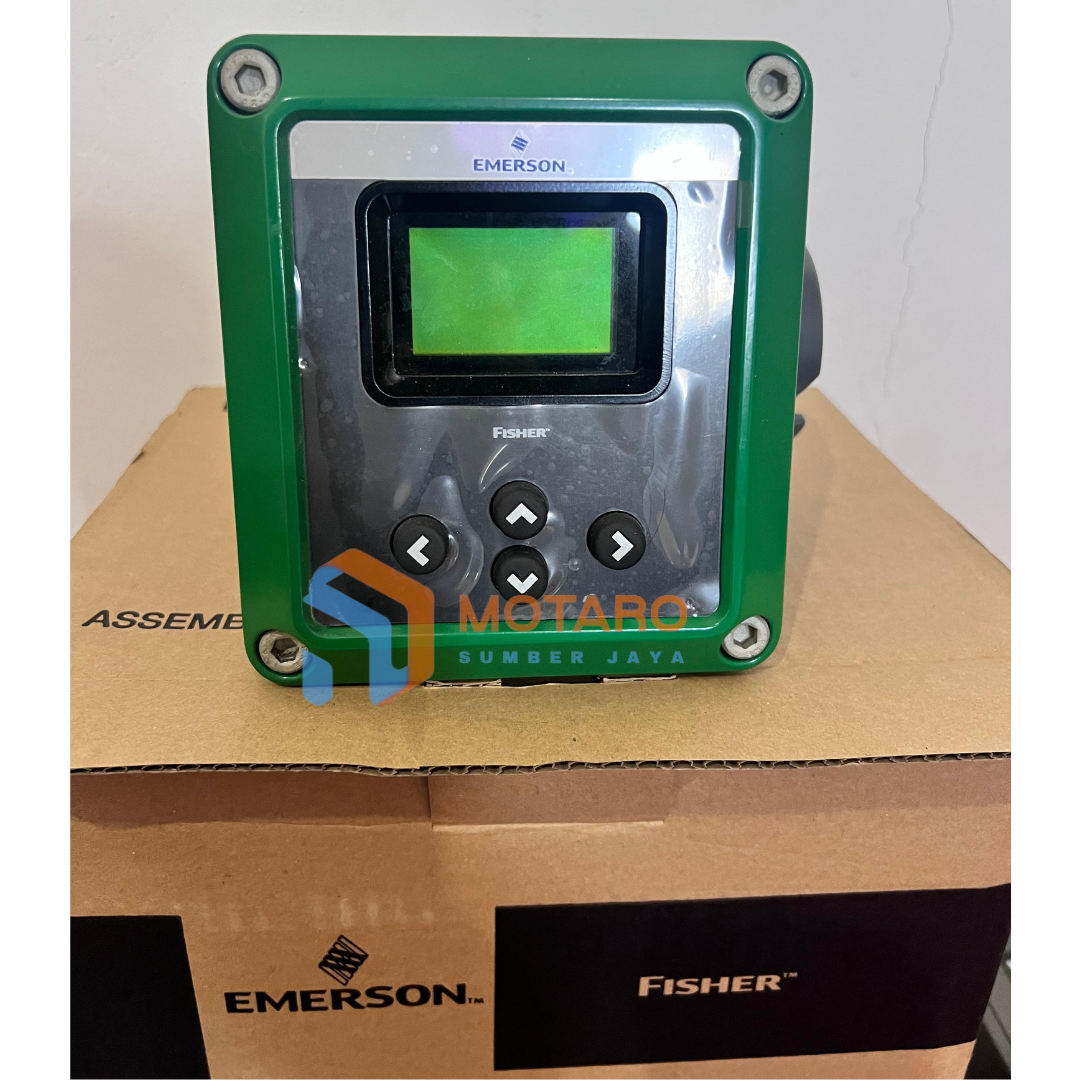

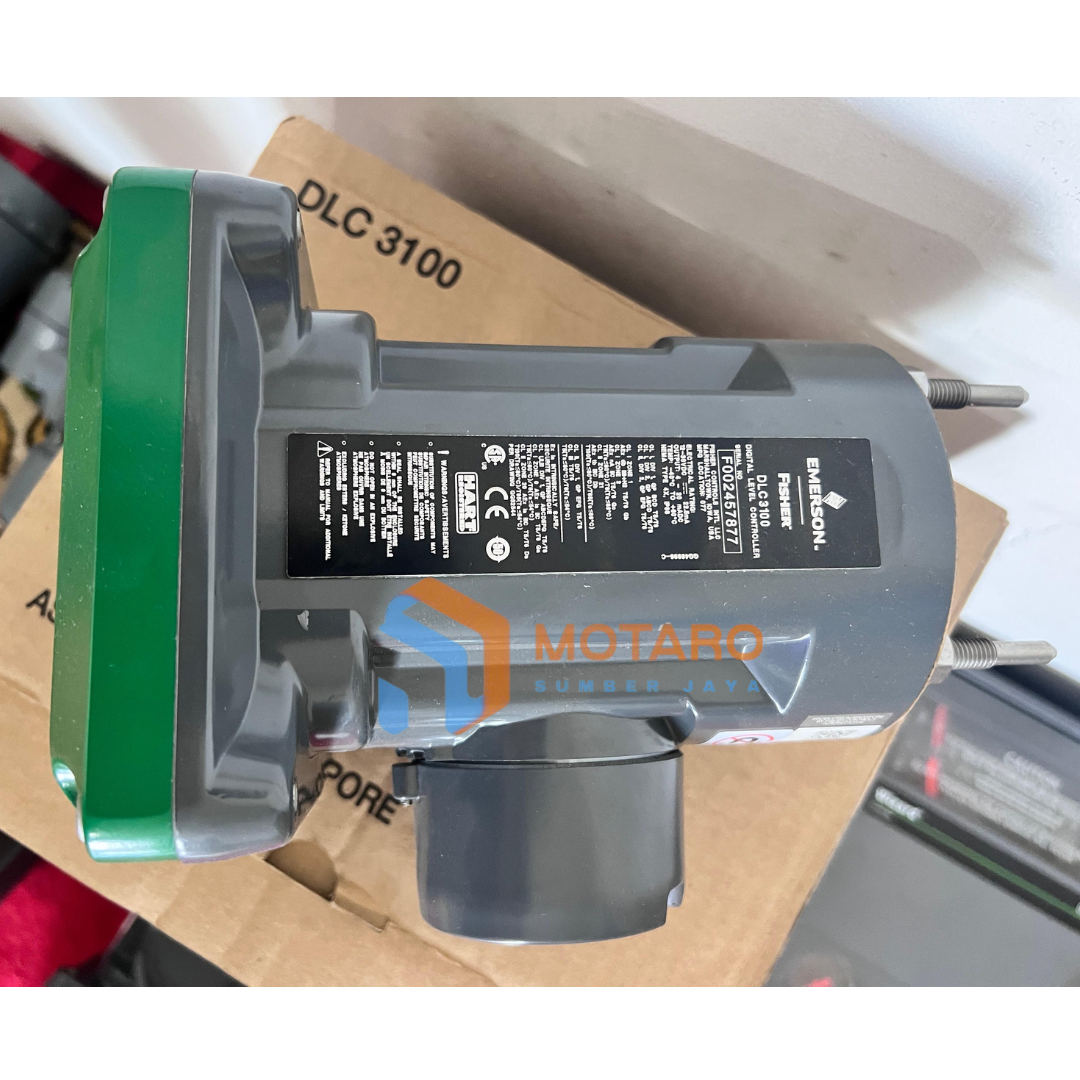

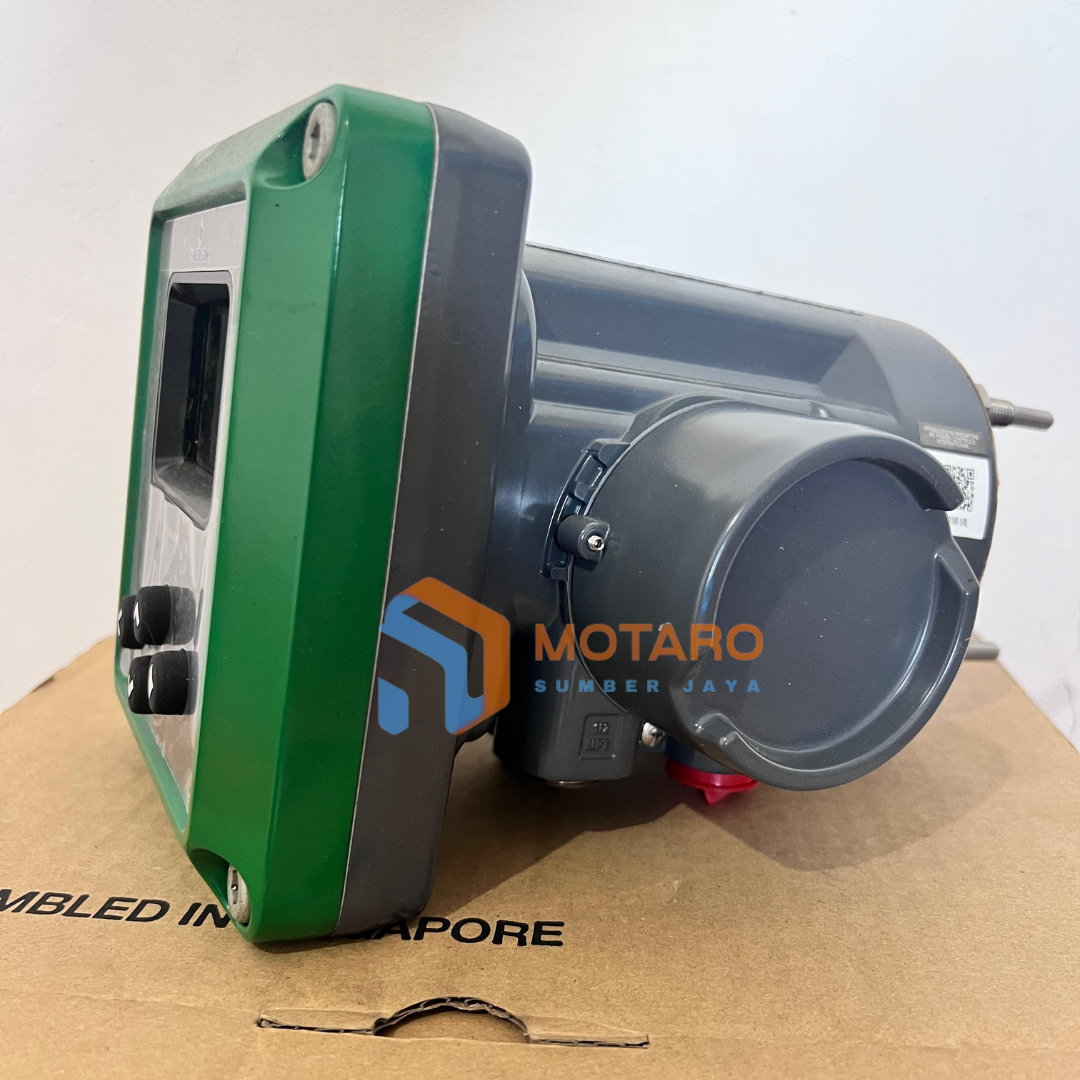

The Fisher DLC3100 FIELDVUE Digital Level Controller by Emerson is an advanced, microprocessor-based instrument designed to measure, display, and control liquid level or interface level in process vessels.
It converts the mechanical motion of a displacer sensor into a digital electronic signal for precise level measurement and control.

Equipped with FIELDVUE™ digital technology, the DLC3100 offers enhanced performance, advanced diagnostics, and remote configuration via HART communication protocol. It ensures reliable operation in demanding process environments such as oil & gas, petrochemical, power generation, and water treatment industries.

Parameter
Description
Model
Fisher DLC3100 FIELDVUE
Manufacturer
Emerson Process Management
Type
Digital Level Controller
Function
Level, Interface, or Density Measurement and Control
Technology
Displacer-based level sensing with digital microprocessor control
Communication Protocol
HART (Highway Addressable Remote Transducer)
Output Signal
4–20 mA DC with HART digital signal superimposed
Input Signal
Torque tube or displacer motion from Fisher Level Sensor Assembly
Power Supply
11–42 VDC (nominal 24 VDC)
Display
LCD digital display with local menu for calibration and diagnostics
Accuracy
±0.25% of span (typical)
Repeatability
±0.1% of span
Response Time
Configurable (typically < 2 seconds)
Process Variable Range
Configurable depending on displacer length and process fluid density
Ambient Temperature Range
-40 °C to +85 °C (-40 °F to +185 °F)
Enclosure Material
Aluminum (standard) or Stainless Steel (optional)
Enclosure Protection
IP66 / NEMA 4X certified
Mounting Type
Direct or Remote mounting on Fisher Level Sensor (200 Series cages)
Conduit Entry
1/2-inch NPT (two entries)
Hazardous Area Certification
FM, CSA, ATEX, IECEx (for explosion-proof or intrinsically safe applications)
Diagnostics
Advanced digital diagnostics for sensor health and performance
Calibration
Local push-button and digital interface via HART communicator (e.g., Emerson 475/AMS)
Weight
Approx. 3.5–4.5 kg depending on housing and options
