Rosemount 3051C Coplanar Pressure Transmitter Manifold

Spesifikasi Rosemount 3051C Coplanar Pressure Transmitter Manifold

Cari berbagai macam dari pilihan terlengkap . Cari penawaran terbaik dan termurah dari supplier terlengkap di Indonetwork.

Pressure Transmitter

Deskripsi Produk

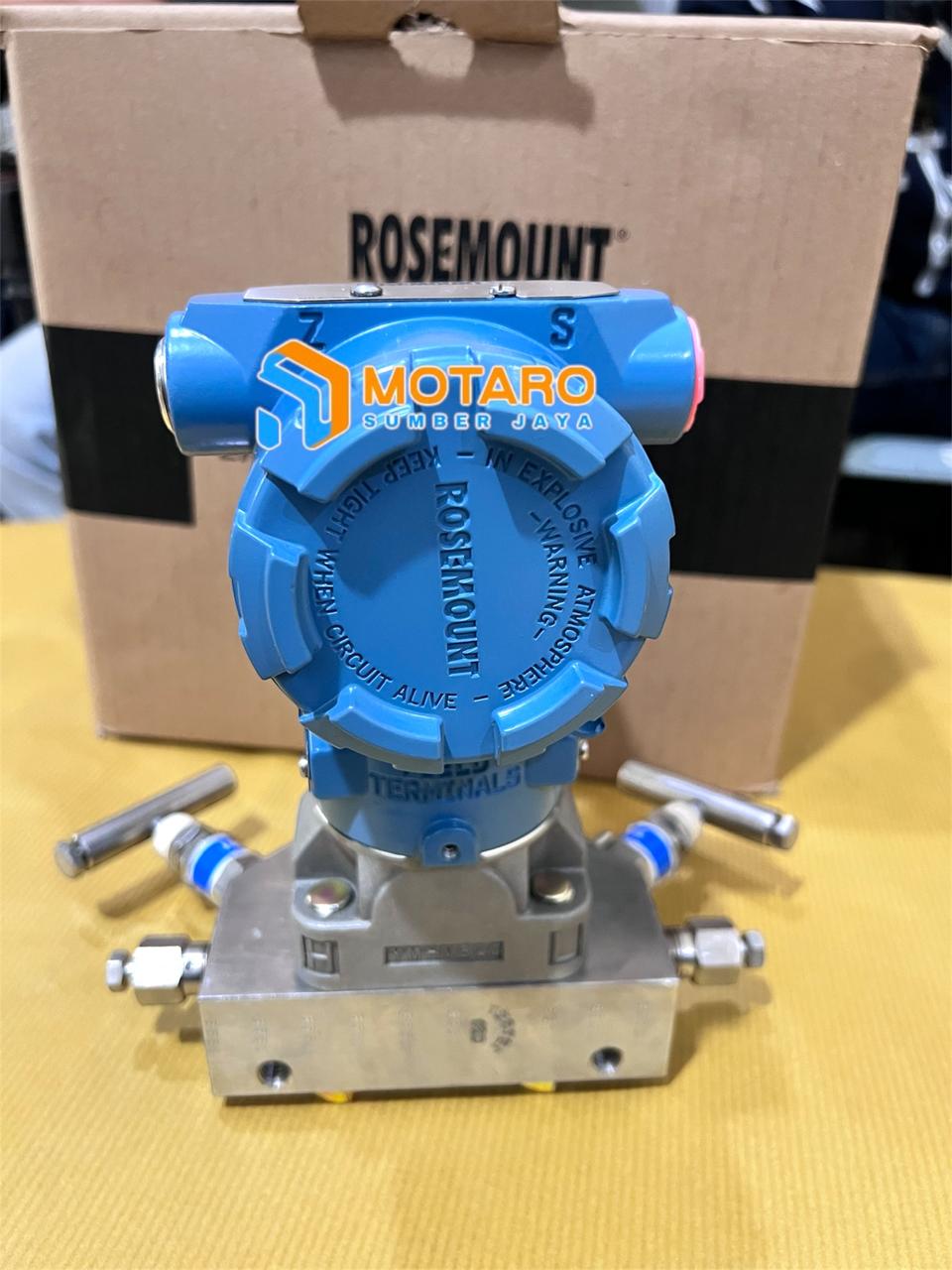

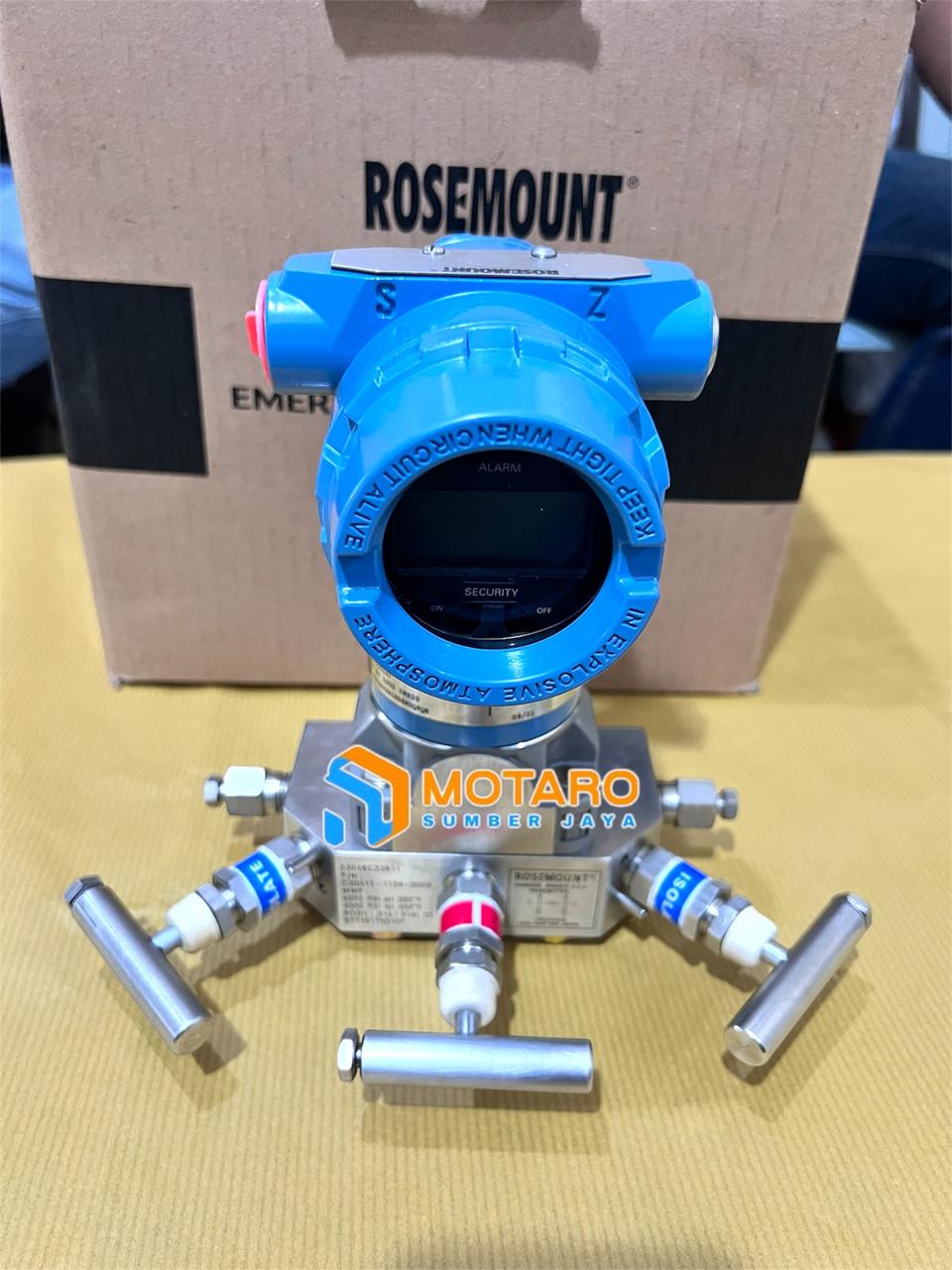

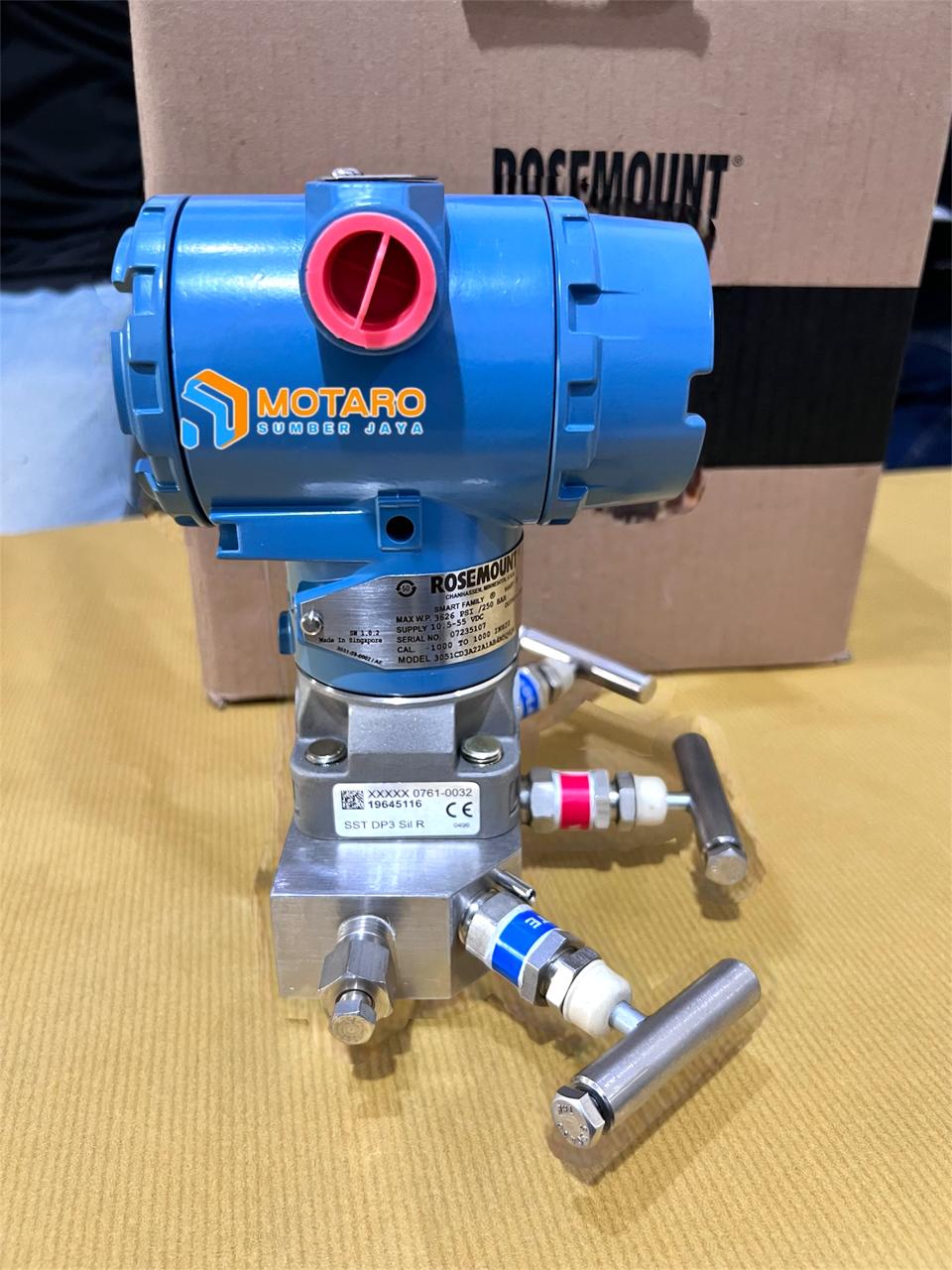

Rosemount 3051C Coplanar Pressure Transmitter adalah transmitter tekanan diferensial/absolut yang digunakan untuk mengukur tekanan, level, atau flow dalam sistem proses industri. Dirancang dengan sensor Coplanar khas Emerson yang memberikan stabilitas tinggi, akurasi presisi, serta fleksibilitas pemasangan. Unit ini dilengkapi dengan 3-Way Manifold (High, Low, dan Vent/Isolation), sehingga memudahkan kalibrasi, isolasi, maupun pemeliharaan tanpa harus melepaskan transmitter dari jalur proses.

Specification

Product: Rosemount 3051C Coplanar Pressure Transmitter C/W 3-Way Manifold

Type : Differential / Gauge / Absolute Pressure Transmitter (Coplanar)
Measuring Range :
Typical turndown: up to 100:1
Span: sesuai order, dari 0–0.75 inH₂O hingga 0–4000 psi (depending on sensor module)
Reference Accuracy : ±0.075% of span (upgradable to ±0.04%)
Stability : ±0.1% of URL for 10 years
Output Signal : 4–20 mA DC, HART® protocol (option: FOUNDATION Fieldbus / Profibus)
Power Supply : 10.5 – 42 VDC (loop powered)
Process Connection : Coplanar flange for 3-Way Manifold (¼" – 18 NPT female)
Manifold Type : 3-Way (High Pressure, Low Pressure, Equalizing) – material Carbon Steel / SS316
Wetted Materials : Stainless Steel 316L / Alloy C-276 (option)
Body Material : Aluminum with polyester coating (option SS)
Pressure Rating : up to 4000 psi (275 bar) depending on sensor range code
Temperature Limits :
Ambient: -40 °C to +85 °C
Process: -40 °C to +120 °C (standard fill fluid)
Enclosure : Aluminum, IP67 / NEMA 4X / Explosion-proof certified
Approvals : ATEX, FM, CSA, IECEx (Explosion-proof, Intrinsically Safe)
Mounting : Coplanar flange mount, direct or bracket to 2-inch pipe
